C1382 ABNORMALITY OF NEUTRAL SWITCH (ONLY VEHICLE WITH ES START)

1. Set the starter switch to "LOCK", disconnect the 22 pin connector of ECU and the connector of neutral switch.

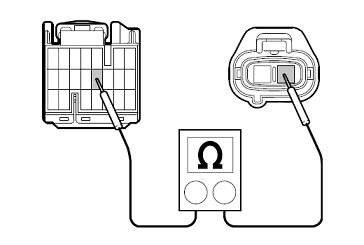

2. Check the continuity between 12th terminal of the 22 pin connector of ECU (chassis harness side) and 2nd terminal of the switch connector (chassis harness side).
   Standard: Continuity


   　

Disconnection of the wire harness.

[1]-3

3. Connect the 22 pin connector of ECU, leaving the connector of neutral switch disconnected, turn the starter switch to "ON".

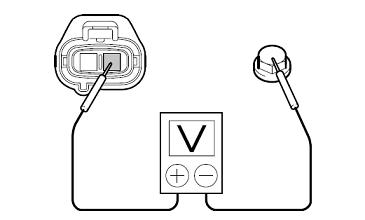

4. Measure the voltage between 2nd terminal of the switch connector (chassis harness side) and chassis ground.
   Standard: More than 20V



Replace the wire harness, or abnormality of the power supply "M".

[2] NEUTRAL SWITCH CHECK

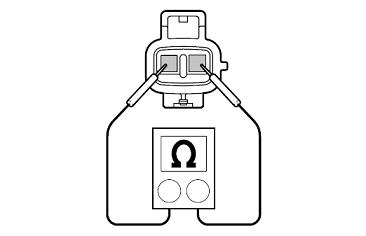

1. Check the continuity between 1st and 2nd terminals of the connector of neutral switch (switch side).
   Standard:
   Putting in gear: No continuity
   Putting in neutral: Continuity




   Within allowable range for excessive play of shifting lever, check that it can not be shifted.

Abnormality of the neutral switch.

Abnormality of the ECU.

1. Confirm the DTC C1382 is inactive

   • Start the engine and let it idling condition.
   • Verify the DTC C1382 is inactive.



2. DTC Clear

   • Clear the DTC with Hino DX
   • Confirm the same DTC is not reoccurred



C1382 is reoccur: Return to first process Other DTC appear: Refer to concerned Trouble shooting

Complete
